China Shenzhen Joaboa Technology Co., Ltd Company Water-based Floor Hardening System

Brief Introduction of Joaboa Tech Water-based Floor Hardening System

Joaboa Tech's Water-based Floor Hardening System is a type of high quality floor hardening system after years of efforts and technologic improvement, which can solve issues like loose concrete structure, easy to generate dust and cracks and short service life by significantly improving the intensity, hardness, permeability resistance and abrasion performance of the concrete.

Main Advantages of Joaboa Tech Water-based Floor Hardening System

1) For hardness, emery floor achieves Level 4-5 while JOABOA TECH's system reaches Level 7-8. 2) For abrasion resistance, emery floor is over 150% and our system is two times more, over 400%. 3)For slip resistance, the coefficient of friction is over 0.56, which means we can drive as normal above it. 4) For Glossiness, it’s over 10 GPU. More importantly, the floor will be brighter and brighter because the materials of car tires is the same as the resin grinding discs. 5) Besides, we have operated official tests for VOC and fireproof, the results are satisfactory.

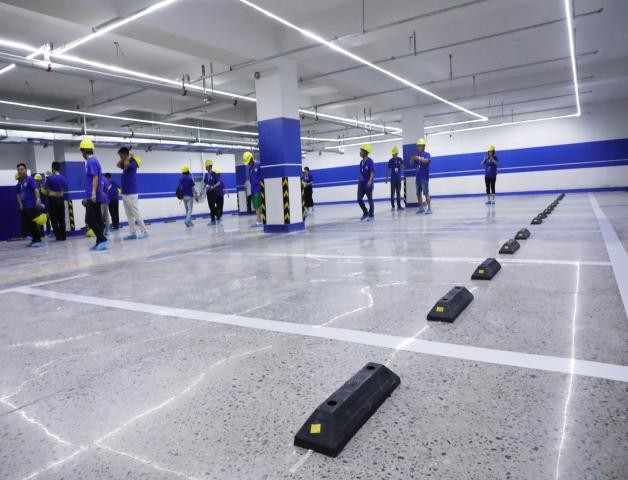

Application Scope of Joaboa Tech Water-based Floor Hardening System

This unique floor hardeing system is applicable for: 1) new concrete surface, like, warehouses, factories, car parks, department stores, shopping malls, service stations, etc. 2) also suitable for the renovation work of old floor hardener systems, especially for the repair work of old epoxy or carborundum floor hardener systems which have issues like sugaring, damages and pulverization phenomenon.

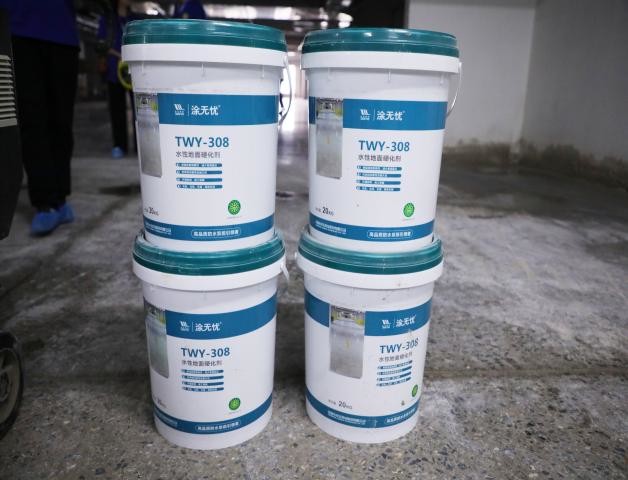

Introduction of TWY-308 Water-based Floor Hardener

TWY-308 Water-based Floor Hardener is a permeable inorganic liquid, full with lithium and other active ions, which can deeply penetrate into the concrete. lt will react with the incomplete hydrationreaction active ingredients inside of the concrete and form into high-intensity inorganic meshy crystalline structure. Because of its excellent acid resistant, alkalis resistant, heat resistant and weather resistant performance, the service life of the floor hardener system will be greatly extended.

Executive Standard of Joaboa Tech Water-based Floor Hardening System

As the Water-based Floor Hardening System is invented by Joaboa Tech, except for standards of traditional flooring systems, like Exposed Concrete Floor Hardening System, Emery Floor Hardening System, Epoxy Floor Hardening System, and Polyurathane Floor Hardening System, etc., there is no equivalent national standard for Joaboa Tech's liquid floor hardening system at present. Thus, Joaboa Tech is using our own Company Standard Q/FZ001-2017.

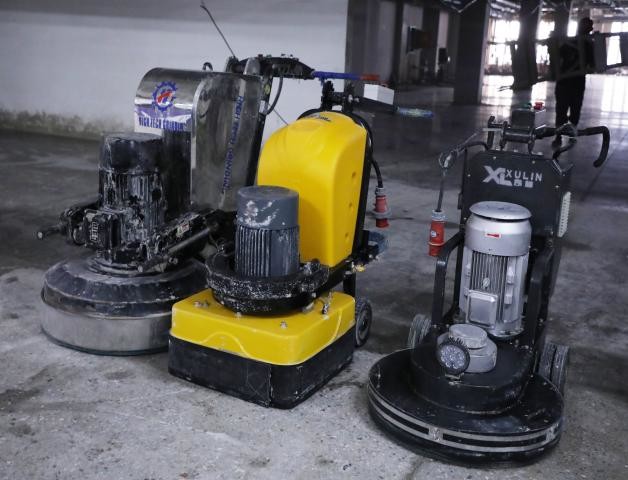

Application Process of Joaboa Tech Water-based Floor Hardening System

1) First, we do substrate treatment. 2) Second, initial grinding with water crosswise to open the channel for floor hardener's penetration deeply into the concrete. 3) Third, materials penetration. This time we mix floor hardener and clean water, each 0.5kg/sqm, evenly and spread them on the floor. 4) After 1.5-2.0 hours curing, grind with 300 mesh to 500 mesh resin discs crosswise. 5) Then we start second time materials penetration. At this time we apply 0.5kg/sqm of pure floor hardener. 6) Do third time grinding with 500 mesh to 1000 mesh resin discs. 7) Last step is detailed polishing.

Comprehensive Introduction

Water-based Floor Hardening System

※ Introduction of TWY-308 Water-based Floor Hardener

Because of its excellent acid resistant, alkalis resistant, heat resistant and weather resistant performance, the service life of the floor hardener system will be greatly extended.

※ System Features

1. lncrease the intensity of previous substrate by 30%.

2. After application, the Mohs Hardness of the concrete surface will reach 7 level or even more.

3. The abrasive resistance of the concrete surface will be improved by 5 to 8 times than before.

4. Greatly increase the concrete density, to seal the concrete surface, strengthen anti-pollution performance.

5. The surface of the floor hardener system will look smooth and burnished, no sugaring and long lasting.

6. Anti-slippery, water-based, environment-friendly, can be applied in food grade production bases.

7. High fireproofing grade, non-flammable, moistureproof, etc.

※ Application Range of Joaboa Tech Water-based Floor Hardening System

The Water Based Floor Hardening System is applicable for:

1) New concrete surface, like, warehouses, factories, car parks, department stores, shopping malls, service stations, etc.

2) Renovation work of old floor hardener systems, especially for the repair work of old epoxy or carborundum floor hardener systems which have issues like sugaring, damages and pulverization phenomenon.

※ Construction Methods

1) First, we do substrate treatment. Before we start massive work, we must make sure the substrate meets our standard requirements.

2) Second, initial grinding with water crosswise to open the channel for floor hardener's penetration deeply into the concrete.

3) Third, materials penetration. This time we mix floor hardener and clean water, each 0.5kg/sqm, evenly and spread them on the floor.

4) After 1.5-2.0 hours curing, grind with 300# mesh to 500# mesh resin discs crosswise.

5) Then we start second time materials penetration. At this time we apply 0.5kg/sqm of pure floor hardener, no need to mix with water. The curing period is 6-8 hours, repeat adding more materials accordingly.

6) Do third time grinding with 500# mesh to 1000# mesh resin discs.

7) Last step is detailed polishing. Grind the floor with 1000# mesh to 2000# mesh resin discs.

※ Construction Points

1. Please do not mix TWY-308 with other liquid materials when using.The hardener agent can be used directly without dilution. If you spray accidentally on glass, marble, tiles, metal or other highly polished surface hardening agent, please clean them immediately with water, to avoid surface corrosion.

2. Can not be used in the gypsum base surface to avoid cracking damage. lt is not recommended to use the hardener on a substrate surface that is often immersed with water or moisture, to avoid product failure.

3.The wear-resisting performance of floor hardener will be more obvious if used on C20 concrete substrate. When using on other level of concrete surface, please conduct a trial test first in a small area.

※ Storage and Transport

1. The product is non-flammable and non-explosive materials, which can be transported in a normal way.

2. During the transportation, please prevent it from rain, squeeze, collision and keep the package in good condition.

3.The product should be stored in a ventilated and dry place. Prevent exposing to the sunlight.

The storage temperature should be within 5℃to 35℃.

4. Under normal conditions, the shelf life is 12 months.

※ Market Share

Joaboa Tech, Inventor and Representative Brand of Chinese Self-adhesive Waterproof Membrane, whose market share has ranked as Top 1 in Chinese domestic market for over 10 years, widely used in Viet Nam, Cambodia, India, etc. as well.
