China Shenzhen Joaboa Technology Co., Ltd Company Decorative & Energy-saving Integrated Cladding System

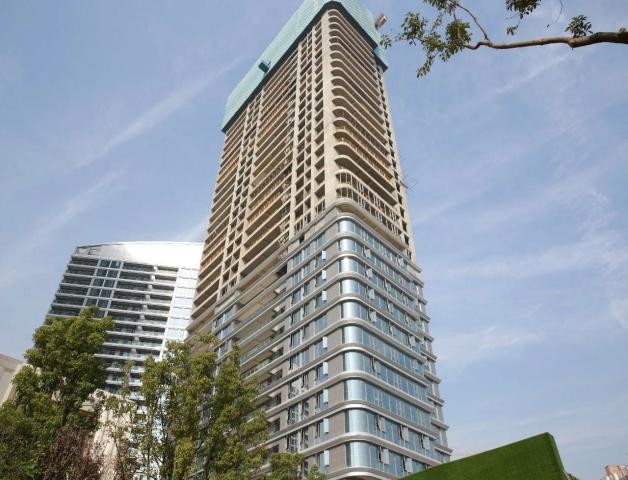

Introduction of Joaboa Tech Integrated Cladding System

Based on the different facing material, Joaboa Tech Integrated Cladding System used can mainly be classified into 3 types: Aluminum Coil/Real Stone/Ceramic Surface Decorative & Energy-saving Integrated Cladding Systems. For this part, we will mainly discuss about Joaboa Tech Aluminum Coil Surface Decorative & Energy-saving Integrated Cladding System, in short, Aluminum-Type Joaboa Tech Cladding System, and the integrated panel we used in this system is called Aluminum-Type Joaboa Panel.

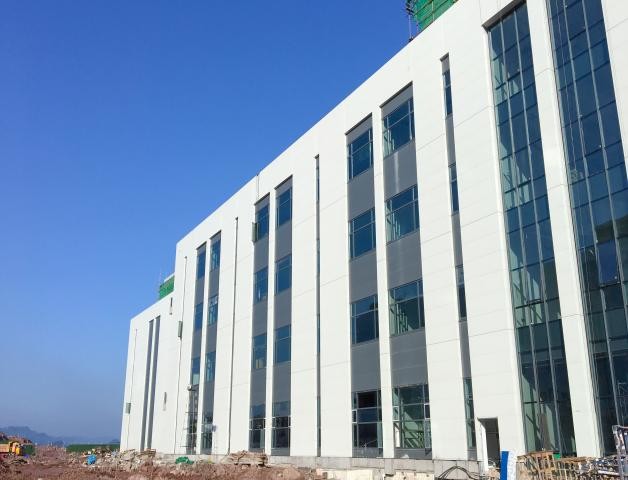

Fluorocarbon & Nano Coating Covered Aluminum Coil Decorative Surface

The surface decorative layer of Aluminum-Type Joaboa Panel is fluorocarbon-coated aluminum coil with uniform particle distribution and low adhesion to dust. Its surface is not easy to adhere to dirt, and has good self-cleaning effect. At the same time, the nano self-cleaning technology of Joaboa Panel adopts high-tech nanotechnology, and a thickness of 1-3 nanometers of TiO2 is prepared on the surface. Under the catalysis of sunlight and ultraviolet radiation, it has two major characteristics: strong oxidation and super hydrophilicity.

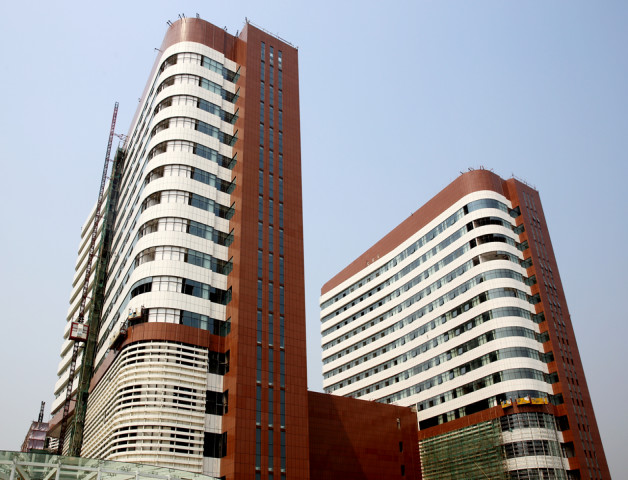

Colorful Aluminum Coil Covered Decorative Effect

The color of the decorative facing layer can be selected from two categories: solid color and imitation stone color. The color can be completely customized. That means we can turn the designer’s imagination into reality, even the color doesn’t exit in the nature. After years of development, Joaboa Tech has become a TOP 1 Brand in Chinese Aluminum Facade Projects Building Industry.

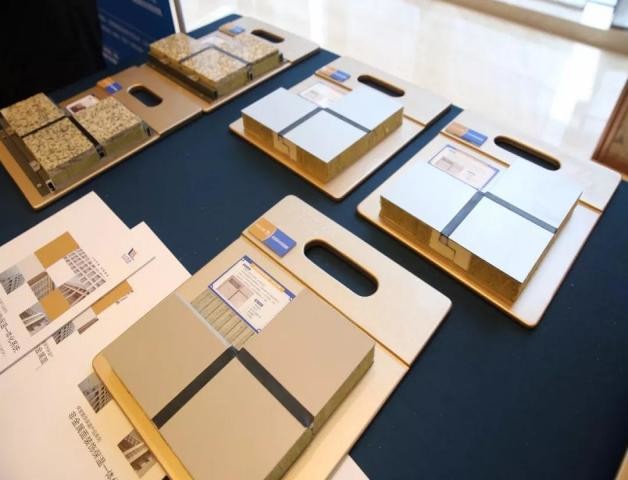

Sizes of Aluminum-Type Joaboa Panel

Let's look at the sizes of Aluminum-Type Joaboa Panel. The width provided is 400mm, 500mm, 600mm and 900mm. The thickness can be chosen from 25mm to 100mm, according to the energy conservation requirement of the project standard. The length can be set to meet the demand of design. Compared with traditional aluminum panels, Joaboa Panels are more selectable.

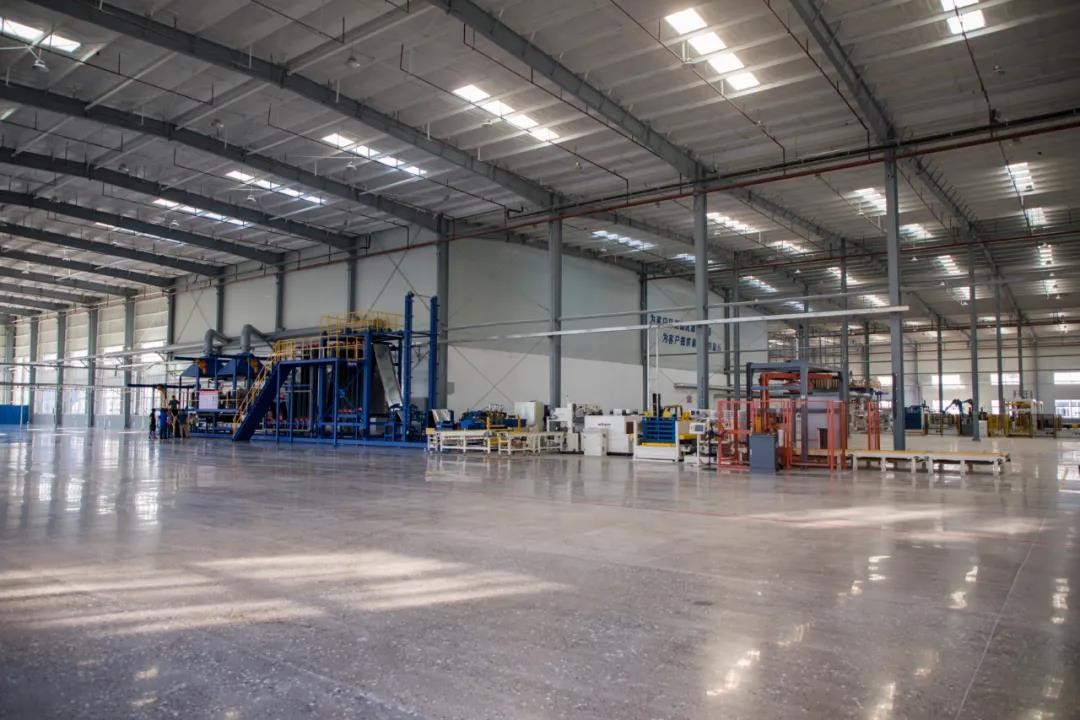

Hot-pressing Production Technology Used in Producing Joaboa Panel

Joaboa Tech introduced the production equipment of sandwich panel supplied by SAIP from Italy, with complete functions and advanced technology. By utilizing polyurethane’s microporous infiltration foaming performance, the panel, insulation core material and backing material can be composite together with hot-pressing process in automatic production lines, thus to ensure the product quality and high production efficiency. For hot pressing process, double track full automatic equipment will be used.

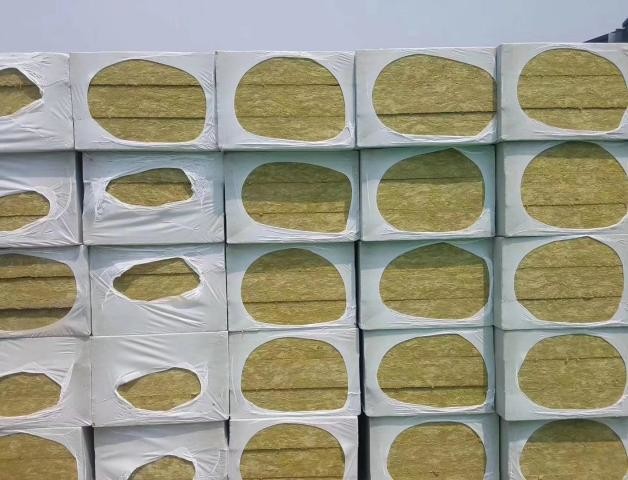

Rock Wool Used in Joaboa Panel

Rock Wool as the core insulation material in Joaboa Panel. Rock wool is a kind of Class A(Non-burning) fireproof material with excellent thermal insulation properties. The water-repellent rate of rock wool is not less than 98%. Joaboa Tech uses the type of Rock Wool whose raw materials are placed vertically not horizontally, so the compressive strength and tensile strength is highly enhanced, which is conducive to increase the stability of the panel itself.

Comprehensive Introduction

Joaboa Tech Decorative & Energy-saving Integrated Cladding System

Based on the different facing material, Joaboa Tech Decorative & Energy-saving Integrated Cladding System used can mainly be classified into 3 types: Aluminum Coil/Real Stone/Ceramic Surface Decorative & Energy-saving Integrated Cladding Systems.

For this part, we will mainly discuss about Joaboa Tech Aluminum Coil Surface Decorative & Energy-saving Integrated Cladding System, in short, Aluminum-Type Joaboa Tech Cladding System, and the integrated panel we used in this system is called Aluminum-Type Joaboa Panel.

※ Introduction of Aluminum-Type Joaboa Panel

Aluminum-Type Joaboa Panel uses Fluorocarbon Coating Covered Aluminum Coil as decorative surface, Rock Wool as insulation core material, and Glass Fiber reinforced cement-based membrane as the backing layer, produced by hot pressing technology.

※ System Features

1. Integrating the insulation and decoration functions into one system. The construction technology is easy, which could effectively accelerate the construction process and shorten the construction period.

2. JOABOA Panel has excellent thermal insulation and fireproof performance. The rock wool is the best fireproof material, which has a fireproof performance of Class A.

3. The Aluminum Coil, Rock Wool Insulation Core Material and Cement-based Membrane are produced by advanced equipment from abroad at an automaticand mechanization scale. The production efficiency is high and the product quality could be guaranteed.

4. JOABOA Panel is a kind of real energy saving and environment-friendly green construction material. All the residual materials resulted by production and construction could be recycled, which make it truly green and pollution free.

5. JOABOA Panel has a complete range of specifications, which greatly enriches the designer's choice of design for different buildings. The system is light-weight, which greatly reduces the load of the main structure of the building.

6. The installation is easy and convenient, which greatly shortens the construction period.

7. According to the application practice and relevant test results of similar system in Germany in recent 40 years, its service life has exceeded the regulation requirements of not less than25 years for external insulation system.

8. The safety of the system fixing is high and the repair and replace resulted by accidental damage is easy. The unique keel compartment sealing, groove and tongue splicing and doubleside mechanical fixing from Joaboa Tech make the system have high fixing safety and wind load resistant ability.

9. The unique sealing and tenon structure create two waterproof barriers for the system.

10. The system has fewer types of components, which saves materials, reduces installation costs,saves construction costs, and performs a cost-effective design.

※ Application Range of Joaboa Tech Aluminum-Type Joaboa Panel

1) New major infrastructure construction, industrial buildings and civil & commercial buildings with requirements for middle and high-end decorative effect, etc.

2) Renovation work of old buildings

※ Construction Methods

For Aluminum-Type Joaboa Panel, there are two kinds of application methods: Stick & Nail Combination Installation Method & Keel Dry Hanging Installation Method.

Keel Dry Hanging Installation Method is not only suitable for use on large scale and flat surface, but also applicable for styling and modeling.

Stick & Nail Combination Installation Method is suitable for application on large scale and flat surface.

In engineering applications, two methods can be used together, depending on the parts of building, thus to choose the appropriate method.

※ Ceramic-Type Joaboa Tech Decorative & Energy-saving Integrated Cladding System

If the owner or developer has high requirements for the facade system but with tight budget, Joaboa Tech will recommend the customers to try our Ceramic-Type Integrated Cladding System, like below:

※ Market Share

Joaboa Tech, Inventor and Representative Brand of Chinese Self-adhesive Waterproof Membrane, whose market share has ranked as Top 1 in Chinese domestic market for over 10 years, widely used in Viet Nam, Cambodia, India, etc. as well.

※ Document Download

Joaboa Tech Decorative and Energy-saving Integrated Cladding System

Decorative & Energy-saving Integrated Cladding System
